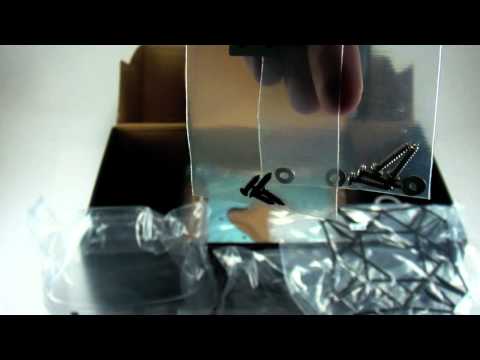

VIDEO: RC Logger RC Eye 650 Box Opening

RC Logger RC Eye 650 Box Opening

- RISC Microprocessor Flight Control!
The RC Eye 650 kit is equipped with latest Atmel RISC processor and MEMS gyro technology, designed in Germany, just as used in modern civil aviation. It provides perfect and flawless flight-control and stunning flight-leveling. Perfectly matched motor-driver technology engineered in Germany specially catered for long and powerful flights. In combination with Scorpion’s brushless motor technology guaranteed for maximum performance and efficiency. The light weight aluminium and plastics composite based frame provides excellent flight stability and protection of all electronic components. A UART interface allows expert flight control programming, parameter adjustment or data logging capabilities – or simply add your very own custom hardware.

- Long powerful FPV Flights!
Hook-Up your RC Logger PRO (special mounting plate set included with kit) and step into the world of FPV flying. Due to its extreme stability this aircraft is an ideal entry to FPV and OSD flight experience. Additional space for mounting OSD and wireless 5.8 GHz video transmission modules or RC Logger add-on modules round-up one complete solution. Novice- and expert- flight modes are pre-selectable.

- Light Up the Sky!
The main frame provides space for an additional available light-control PCB. The night flying add-on kit includes a controller for 8 outputs supporting single LED’s or LED strips (included with night flying add-on kit).

- Areal Photography at its Best!
Wide and tall landing skid construction allowing to install additional load such as cameras onto the RC Eye 650. The main frame provides mounting holes for any custom made mounting plate. A mounting plate set specifically designed for the RC Logger PRO is included with the kit. The RC Eye 650 has plenty of power reserve to lift even large objects, at the same time ensuring long flight time provided through Scorpions motor technology and the well optimized motor driver. Flight stability and power efficiency are the key ingredients to successful areal photography or videography. The RC Eye 650 transforms you into the directors chair – well aforadle and professional.

- Connect your Controls!
Link up your RC Logger devices such as the GPS add-on module and IMU add-on module to get even more out of your RC Eye 650 flight experience. A communication interface (in development) will add autonomous flying capabilities to this extraordinary aircraft. Experienced pilots have the freedom of choosing and adjusting individual flight control parameters such as pitch, roll, yaw and throttle. Just connect the craft to your PC using the additional data kit and adjust your personal level of control. The RC Eye 650 offers various standard flight modes which do not require user programming or PC interfacing.

The following items are included in the delivery:

1. RC Eye 650 kit including 4x Scorpion brushless motor(s), includes all mechanical parts, wires
2. 2x Motor driver PCB
3. 1x Flight control board with MEMS gyro (QC-09)
4. 1x PWM signal converter(QC-07)
5. 2x Anti slip battery strap
6. Special ABS mounting bracket for RC Logger HD, HD2, PRO, X2
7. 4x High performance propeller, glasfiber enforced
8. Sticker set
9. Assembly and operating instructions

Additional RC equipment required:

• Standard RC radio set (TX/RX), minimum 6-channel, 2.4 GHz preferred
• 11.1 V, 30 C, 3600 mAh – 4000 mAh, 3 S LiPo battery (one required)
• Suitable LiPo battery balancer and charger

General Specifications
Rotor Diameter: 305 mm
Dimensions: (W x H) 650 mm x 285 mm

No load weight:
880 g (without battery and additional load)

Weight:
Approx. 1,100 g (with LiPo battery)
Max take-off weight:
2,000 g (must not be exceeded)
Control options: Pitch, Roll, Yaw, Throttle

Motor Specifications
Manufacturer: Scorpion Power Systems
Model: RCE-M650
Part No.: SII-2213-940kv
Shear force (per motor): Max. 900 g

Power Specifications
Battery voltage: 11.1 V, 3 S, LiPo, 3600 mAh – 4000 mAh
Battery dimension: 142 x 43 x 25.95 mm (L x W x H)
Input voltage: 9 – 12 V/DC
Input current: Max. 19 A per DC motor

Operating Environment
Operational area: Indoors and outdoors at dry conditions
Wind during flight operation: No to light wind
Ambient temperature: +10 – +40 Celsius
Air humidity: Max. 80%, non-condensing

Source: ReadyHeli via YouTube
