HWC/Zenoah Modified High Performance Engines

We are proud to announce we will be distributing a new line of modified Zenoah engines. The HWC Modified High Performance Zenoah Engines will be available for your helicopter bringing new standards of performance to the gas powered market.

Key Features

● 6-7.4V Li-Po ready electronic ignition with variable timing, no voltage regulator needed.
● The proven and efficient ignition system only draws 300-400mAh which allows for a smaller battery and longer flight times between charges.
● Increased power band compared to magneto engines.
● Specially designed tuned muffler included and purpose built for helicopter’s high outputs and quieter operation.
● All up weight savings of 250g compared to a magneto style engine*
*Pertains to HWC/Zenoah G23e, 26e, 29e Engines

Overview
Easier engine startup. Incredible fuel efficiency with legendary Zenoah parts reliability. HWC performance improving technology. You’ll get it all, plus power to spare, with HWC/Zenoah electronic ignition engines. The engines share many of the core components Zenoah uses in their world famous magneto engines. And, like the magneto engines, they’re built for modelers who value dependability and ease of use above all else.

What sets HWC/Zenoah helicopter engines apart is their sophisticated electronic ignition system that saves weight and makes starting much easier. The HWC EI system can be powered with 6V to 7.4V Li-Po batteries. Never needs power regulators and the current draw is so low you’ll be able to use smaller capacity battery packs and save weight.

Because the EI system eliminates the need for magnetos and other supporting components, HWC/Zenoah helicopter engines are significantly lighter as well. This reduced weight coupled with the impressive torque numbers make it possible to achieve thrilling power-to-weight ratio performance.

Engine Models

HWC/Zenoah G20e Engine

1. HWC modified Zenoah engine specially designed for the Century Radikal G20 helicopter.
2. HWC 25000 RPM high efficiency electronic ignition unit 7.4V
3. High flow HWC/Century Air Filter
4. Walbro anti-air bubble internal tank fuel filter
5. HWC/Century Torpedo Slim v.2 (standard by-pass porting) tunable muffler (Optional)
6. Pull start adapter plate for the Radikal G20
7. Instruction manual with one year parts defect limited warranty

Specs:
Fuel Type: Gasoline
Cylinders: Single
Displacement: 1.2 cu. in. (20.1cc)
Carb Type: Walbro 881 w/choke
Cylinder Type: Ringed Nikasil plated
Muffler Type: HWC/Century Torpedo Slim v.2
Fuel: Gasoline/Oil Mix 32:1
RPM Range: 1,500–15,000
Crankshaft Threads: M8 x 1.25
Stroke: 1.00 in (25mm)
Bore: 1.26 in (32mm)

HWC/Zenoah G231e Engine
1. Perfectly balanced engine, ideal for high RPM with high output design.
2. Modifications are performed with a 5-axis CNC machine for reliability and reproducible results each and every time.
3. HWC modified Zenoah engine specially designed for most high performance gas helicopters (Radikal G30, All Predators, and others)
4. HWC 25000 RPM high efficiency electronic ignition unit 7.4V
5. High flow HWC/Century Air Filter
6. Walbro anti-air bubble internal tank fuel filter
7. HWC/Century Torpedo Slim v.2 (enlarged by-pass porting) tunable muffler #CN3071B (Optional)
8. Modifications include: Modified piston. Lightened piston pin, Balanced crankshaft.
9. High performance Walbro #990 dual jet carburetor
10. HWC G231-G29 ignition pick-up assembly. Includes ignition plate and mount
11. Pull start plate set & all adapter screws
12. Instruction manual with one year parts defect limited warranty

Specs:
Fuel Type: Gasoline
Cylinders: Single
Displacement: 1.37 cu. in. (22.5cc)
Carb Type: Walbro 990H
Cylinder Type: Ringed Nikasil plated
Muffler Type: HWC/Century Torpedo v.2 Slim
Fuel: Gasoline/Oil Mix 32:1
RPM Range: 1,500–15,000
Crankshaft Threads: M8 x 1.25
Stroke: 1.10 in (28mm)
Bore: 1.26 in (32mm)

Teaser 2012

YouTube Preview Image

HWC/Zenoah G231e Engine Performance

Nitro what?

YouTube Preview Image

HWC/Zenoah G231e Engine Performance

HWC/Zenoah G26e 3D Max Engine

1. Perfectly balanced and blueprinted engine, ideal for high RPM with high output design.
2. Modifications are performed with a 5-axis CNC machine for reliability and reproducible results each and every time.
3. HWC modified Zenoah engine specially designed for most high performance gas helicopters (Radikal G30, All Predators, and others)
4. HWC 25000 RPM high efficiency electronic ignition unit 7.4V
5. High flow HWC/Century Air Filter
6. Walbro anti-air bubble internal tank fuel filter
7. HWC/Century Torpedo v.5 or Torpedo Slim v.2 (enlarged by-pass porting) tunable muffler #CN3071B (Optional)
8. Modifications include: Modified piston & lightened piston pin. Balanced crankshaft. Modified intake port, modified transfer port, modified exhaust port. Modified crank case and backplate removal.
9. High performance Walbro #990 dual jet carburetor
10. HWC G231-G29 ignition pick-up assembly. Includes ignition plate and mount
11. Pull start plate set & all adapter screws (Optional)
12. Instruction manual with one year parts defect limited warranty

Specs:
Fuel Type: Gasoline
Cylinders: Single
Displacement: 1.55 cu. in. (25.4 cc)
Carb Type: Walbro 990H
Cylinder Type: Ringed Nikasil plated
Muffler Type: Custom Tuned Muffler
Fuel: Gasoline/Oil Mix 32:1
RPM Range: 1,500–15,000
Crankshaft Threads: M8 x 1.25
Stroke: 1.10 in (28mm)
Bore: 1.34 in (34mm)

HWC/Zenoah G29e 3D Max Engine
1. Perfectly balanced and blueprinted engine, ideal for high RPM with high output design.
2. Modifications are performed with a 5-axis CNC machine for reliability and reproducible results each and every time.
3. HWC modified Zenoah engine specially designed for most high performance gas helicopters (Radikal G30, All Predators, and others)
4. HWC 25000 RPM high efficiency electronic ignition unit 7.4V
5. High flow HWC/Century Air Filter
6. Walbro anti-air bubble internal tank fuel filter
7. HWC/Century Torpedo v.5 or Torpedo Slim v.2 (enlarged exhaust porting) tunable muffler #CN3071B (Optional)
8. Modifications include: Modified piston & lightened piston pin. Balanced crankshaft. Modified intake port, modified transfer port, modified exhaust port. Modified crank case and backplate removal.
9. High performance Walbro #990 dual jet carburetor
10. HWC G231-G29 ignition pick-up assembly. Includes ignition plate and mount
11. Pull start plate set & all adapter screws (Optional)
12. Instruction manual with one year parts defect limited warranty

Specs:
Fuel Type: Gasoline
Cylinders: Single
Displacement: 1.74 cu. in. (28.5cc)
Carb Type: Walbro 990H
Cylinder Type: Ringed Nikasil plated
Muffler Type: Custom Tuned Muffler
Fuel: Gasoline/Oil Mix 32:1
RPM Range: 1,500–15,000
Crankshaft Threads: M8 x 1.25
Stroke: 1.10 in (28mm)
Bore: 1.42 in (36mm)

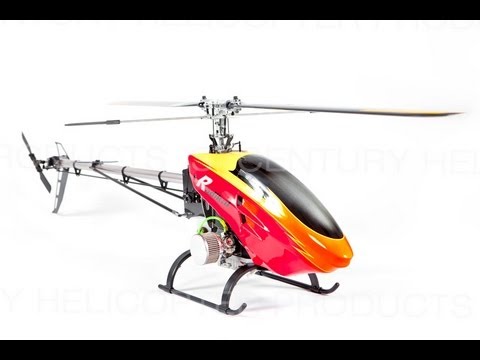

Radikal G30 – HWC Modified Zenoah G29e 3D Max Engine

YouTube Preview Image

HWC/Zenoah G29e Engine Performance

Century Radikal G30 Gasser FBL Torque Tube Version with new HWC (Hobby World Corporation) Modified Zenoah G29e 3D Max Engine. Equipped with Century Torpedo Slim Muffler v.2 (Enlarged exhaust porting), RotorTech 690 FBL Blades, 105 RotorTech Tail Blades, Futaba BLS451 Cyclic Servos, BLS251 Rudder, and MicroBeast. Headspeed is 2050RPM. Piloted by: Garett Oku

Source: Century Helicopter Products
