Align RCE G600 Governor-RPM/Gain Table

The RCE G600 Governor comes standard with the 700N kit. It is also available as an option for a budget governor.

Lets take a look at the governor…
It comes with a very small sensor mount that is a perfect fit for a 700N. It should work well for other helicopters that are using clutch bell mounted magnets. With a small mod of changing the connector, the sensor can work with other governors like Throttle Jockey series and ATG.

Size comparison with ATG V3

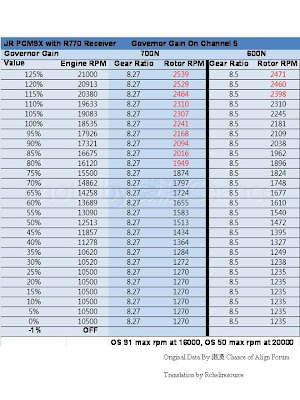

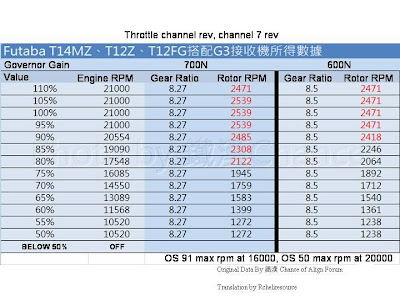

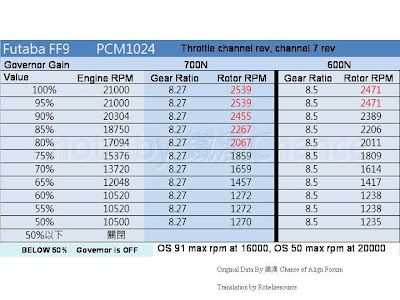

Not too long ago, Chance on the Align forum did a Governor gain vs actual rpm for the G600 on JR PCM, Futaba 1024 and Futaba G3 tx/rx. I have done a tiny bit of translation from the original chinese version to english.

Original thread on Align Forum

Chance’s blog(Very interesting articles there…but unforunately, all of them are in chinese language)
